Sapporo Dome,Japan——札幌巨蛋

时间:2008-12-10  来源:都市世界  作者:佚名


李铁:被误读的城镇化 2013城市发展与规划大会
2013年4月29-5月5日 张家界城镇体系规划
难题与对策:城镇化的路径选择 长沙天心城市设计

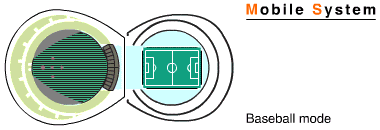

The highly advanced and technological stadium 'Sapparo Dome' is a multifunctional and innovative framework that is able to easily transform itself from a football (soccer) stadium into a baseball park as seen at the image below.

Sapparo Dome是一座多功能体育场,可以非常轻松地从一座足球场转换成棒球场。它也是日本为举办2002年世界杯而修建的体育场。



The system is as simple as it is sophisticated. Raised on a pneumatic system, the playing field is made to rotate and pass through a mechanized 90 meter opening of two moving walls. The field can either be placed in an artificial basin below the stadium or transported outside where the grass can grow naturally. The whole transformation process takes only 5 hours to complete.

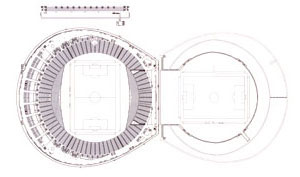

The stadium was constructed by a group led by architect Hiroshi Hara. It has the shape of a large '8' which is created from the union of the two lengthened circumferences. One of these circumferences constitutes the actual stadium: the arena is characterized by a single ring of continuous tiers which form a circle around the conical surface. Tribunes are automatically moved throughout the field depending on the sport - a rectangular tribune is used for a soccer field, by rotating the tribunes a diamond shape is formed for baseball.

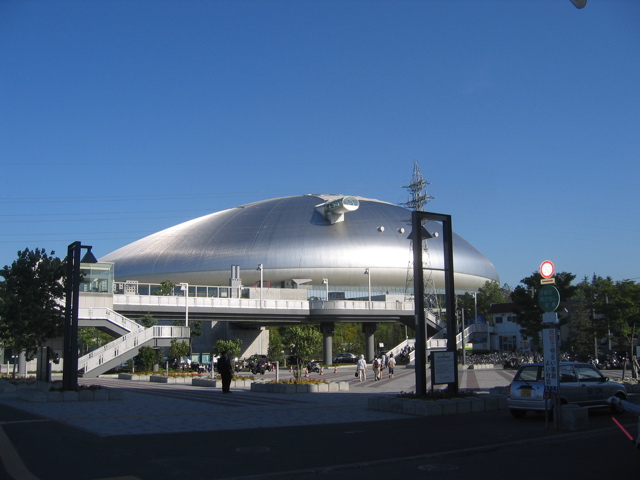

The dome was inaugurated on 02 June 2001 and also serves as a meeting place for local citizens, consequently the stadium is nicknamed 'Hiroba' (the public square). Moreover, the stadium offers a great attraction, namely the existence of a 53 meter high cupola from where there is a beautiful view over the city. From the outside, the stadium looks like a futuristic complex thanks to the aerodynamic shape that can open and close depending on climatic conditions.
