该别墅位于ORDOS 100国际建筑师项目中的6号地块。

Architects: MOS - Michael Meredith, Hilary Sample

Location: Ordos, Inner Mongolia, China

Design team: Lasha Brown, James Tate, Lorenzo Marasso, Heather Bizon,

Shu- Chang, Vivian Chin (translation)

Structural Engineering: Simpson Gumpertz & Heger- Paul Kassabian

Design year: 2008

Construction year: 2009

Curator: Ai Weiwei, Beijing, China

Client: Jiang Yuan Water Engineering Ltd, Inner Mongolia, China

Constructed Area: 1,000 sqm aprox

Images: MOS

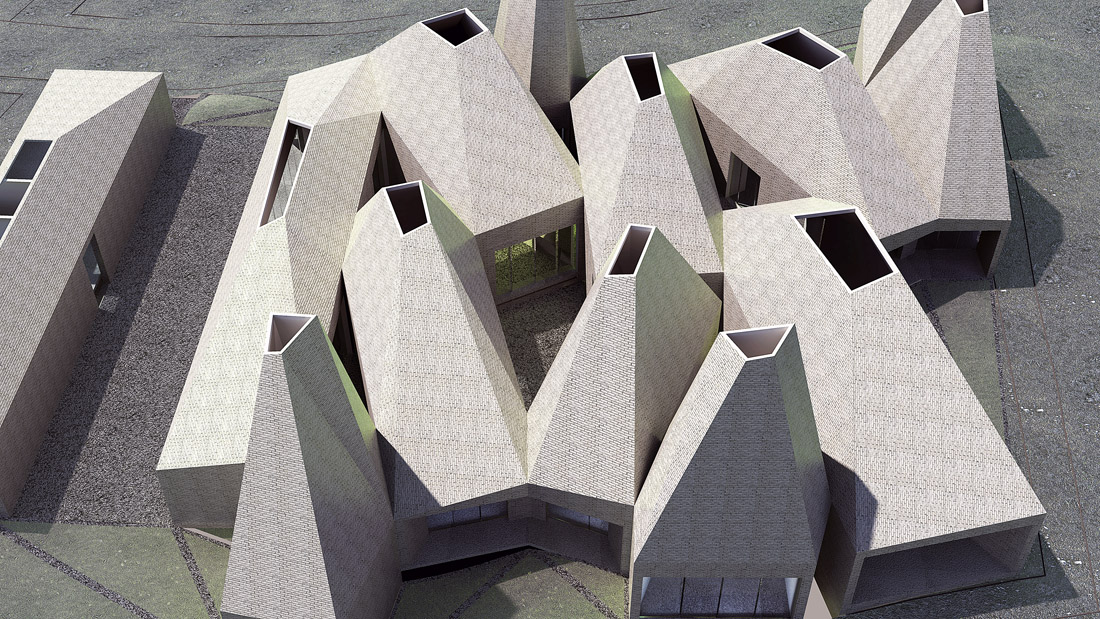

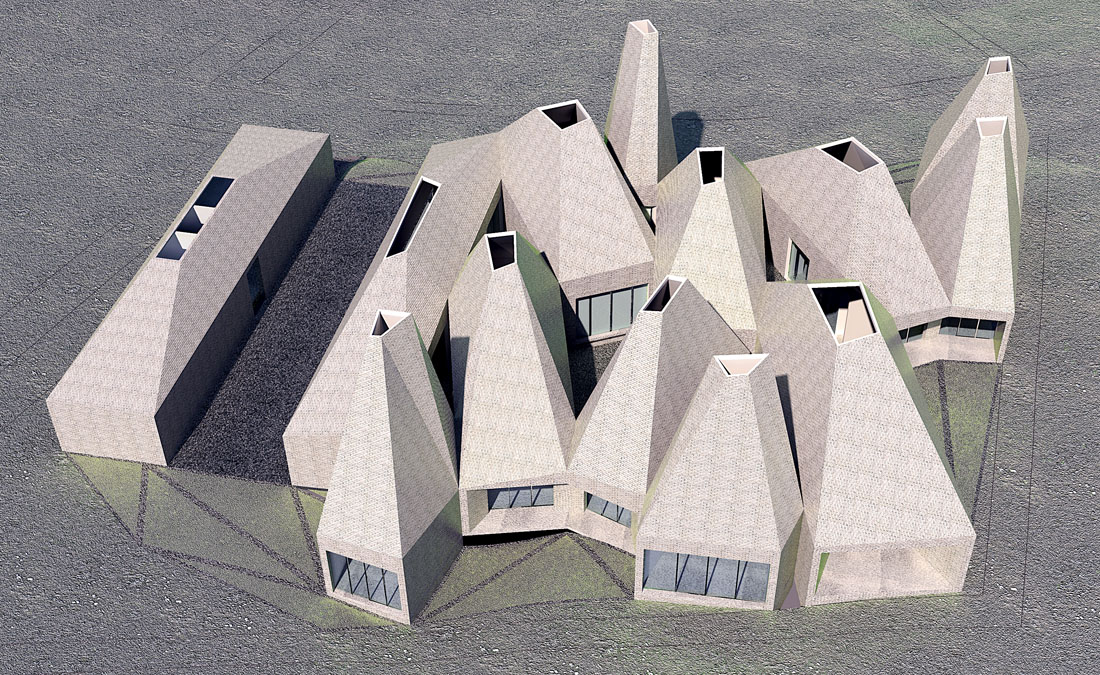

We based our proposal upon a traditional Chinese courtyard house typology. Each room and function is housed within an individual building volume, which are connected at the corners to remove the need for hallways and excessive circulation space.

The relationship of the house to the sun is critical. In a climate such as Ordos’ which experiences hot summers and cold winters, it is the architectural form which integrates the effects of the sun’s light and heat with the comfort of the occupied spaces. The house controls heat and light through two primary aspects: window placement and the solar chimney.

In the wintertime when the sun is lower and the need for internal heat greater, the windows and skylights, oriented towards the south, west and east, allow sunlight to enter. Passive heating is achieved as the masonry walls and floors absorb the accompanying solar radiation which then is released to heat the spaces.

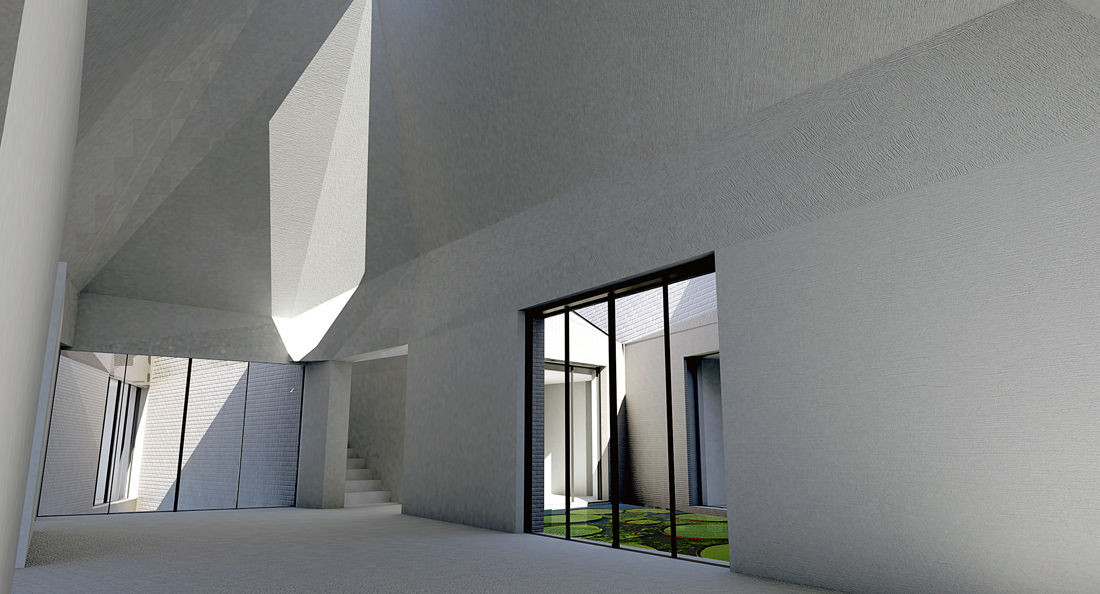

In the summer, when the sun is higher and thetemperatures greater, it is more important to keep the occupied spaces cool. The deep window sills help to shade the interior spaces from the higher summer sun while still allowing in ambient light. Because heat rises, the solar chimney acts to draw hot air up and away from the occupied spaces, and the hot air is further removed through the operable skylights. Lower, cooler air is then drawn into the space at the occupancy level, further helping to cool the rooms. Furthermore, the masonry walls and floors slow and decrease the transmission of solar radiation into the interior spaces.

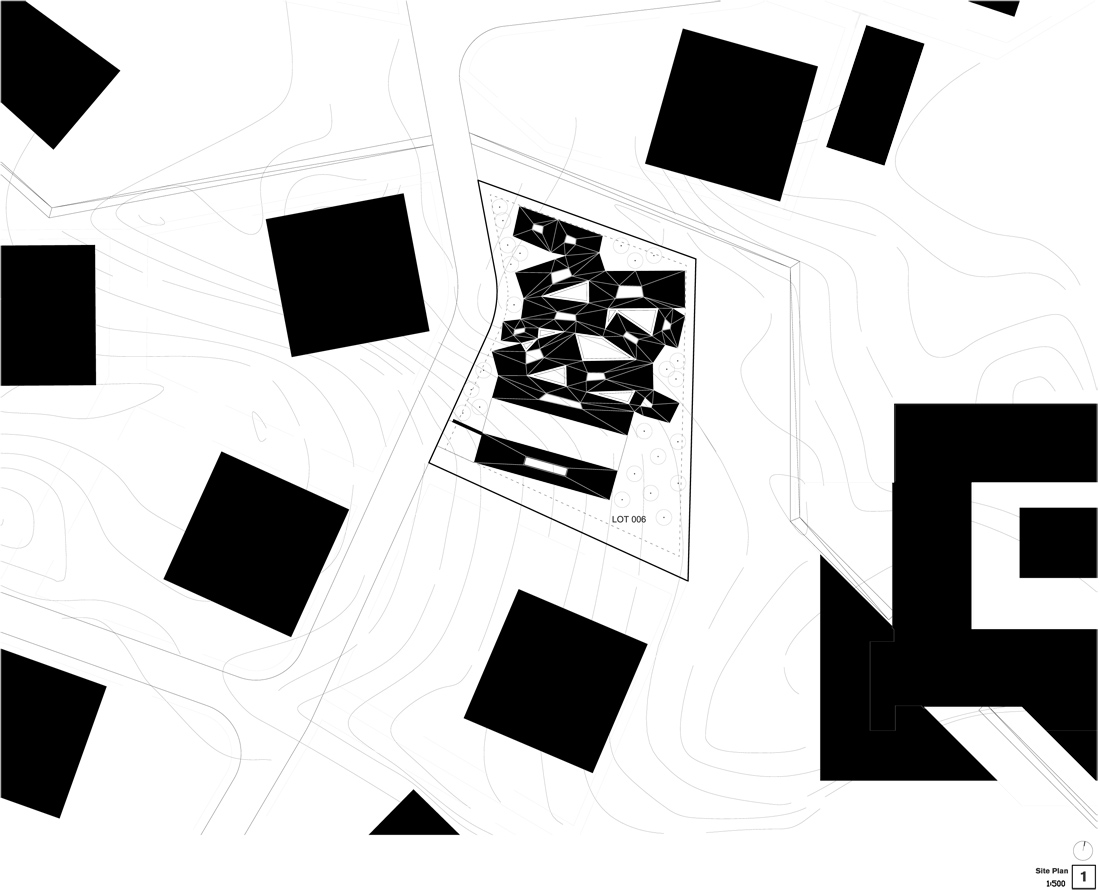

site plan

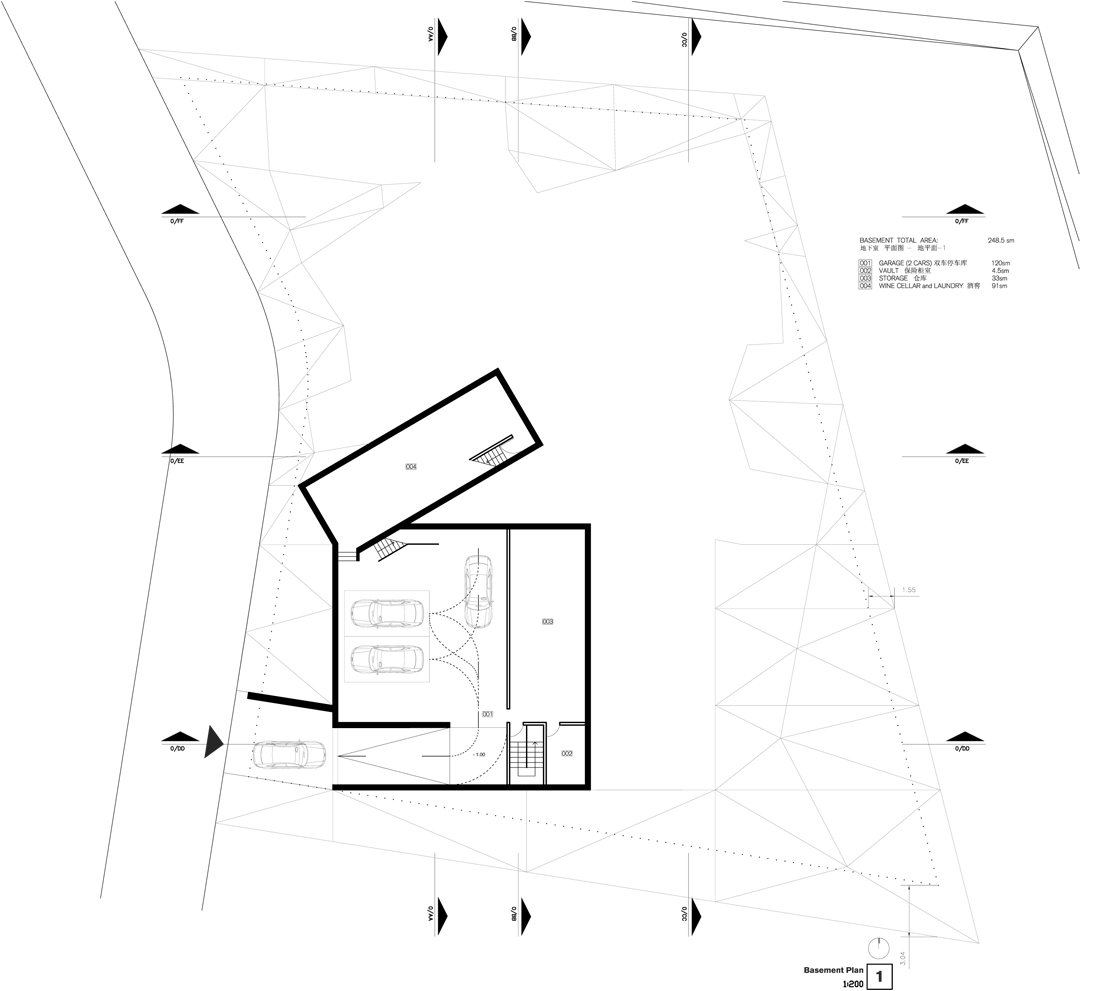

basement plan

ground floor plan

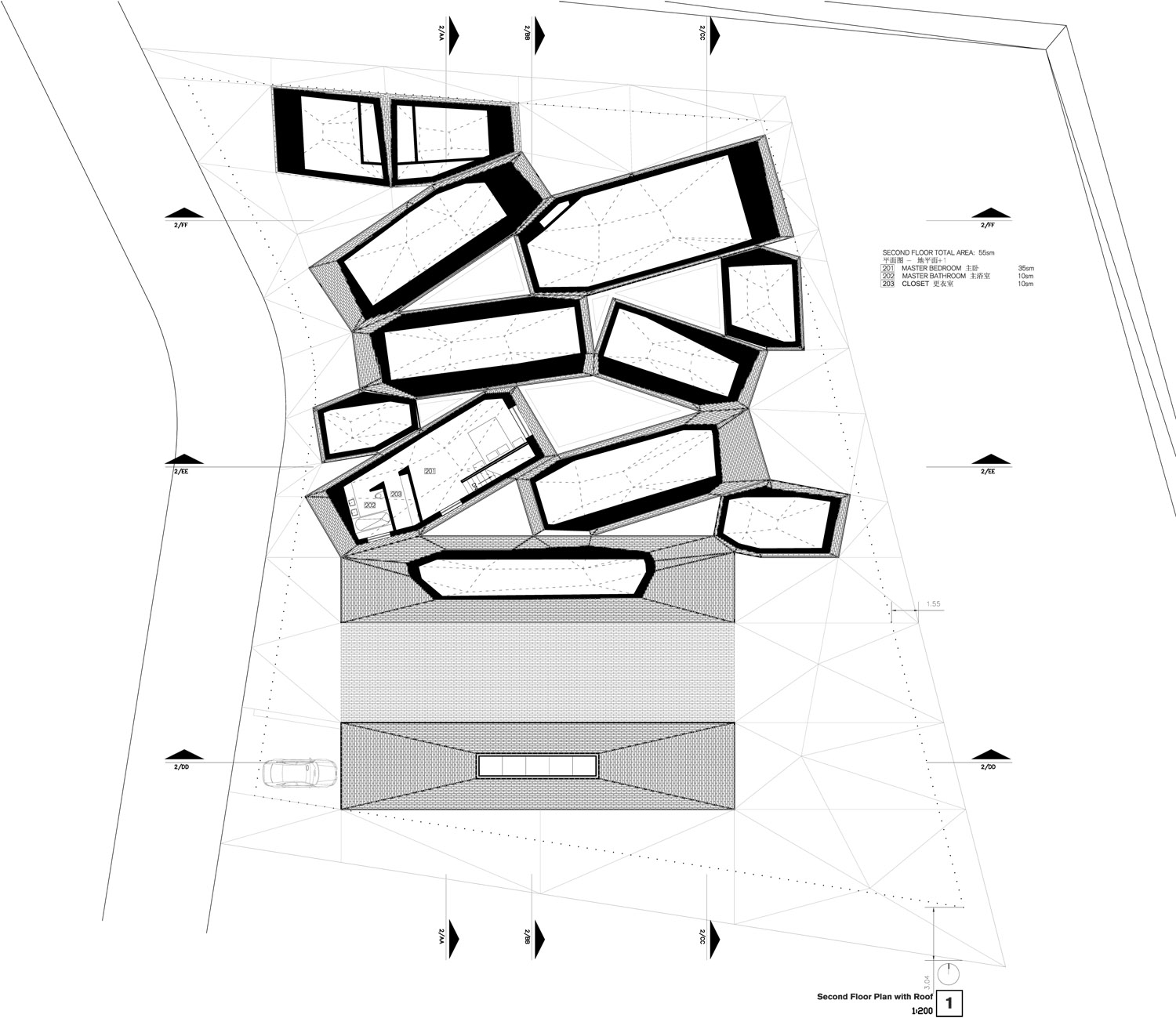

second floor plan

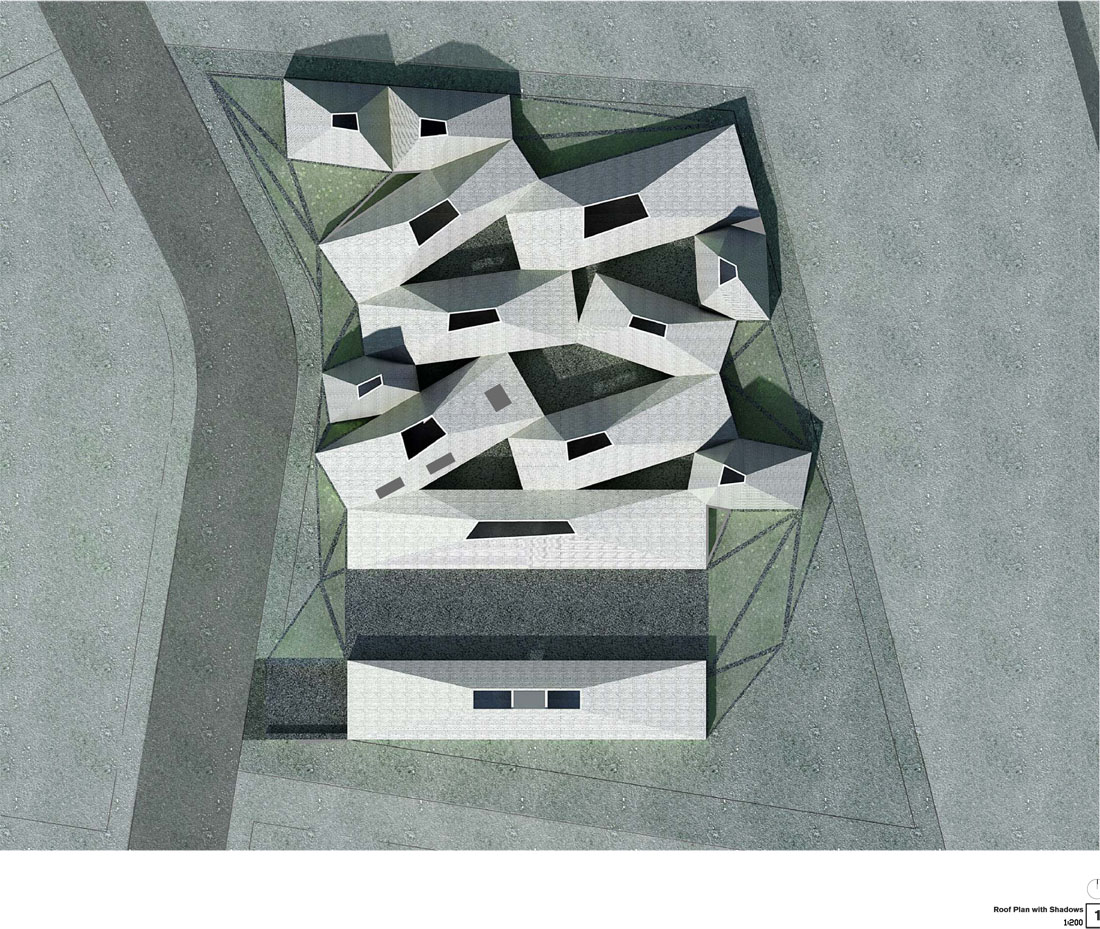

roof plan

west elevation

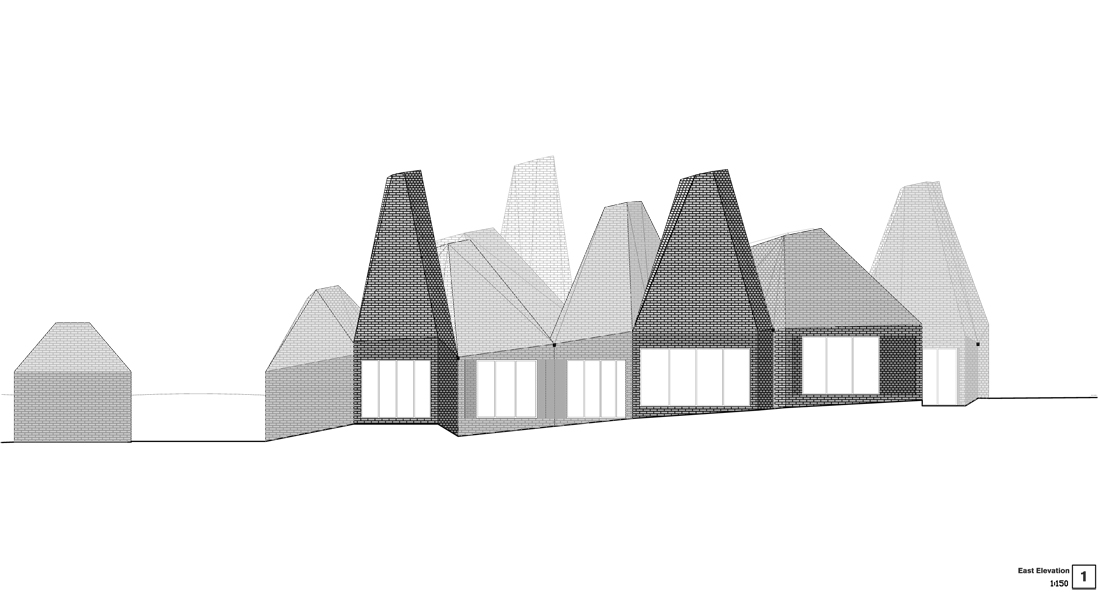

east elevation

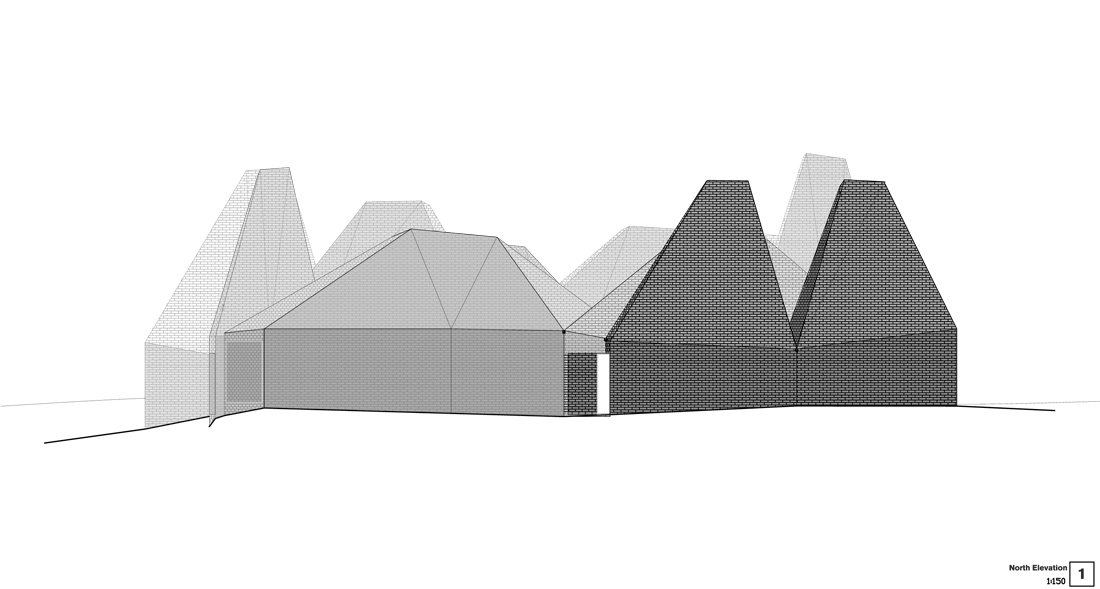

north elevation

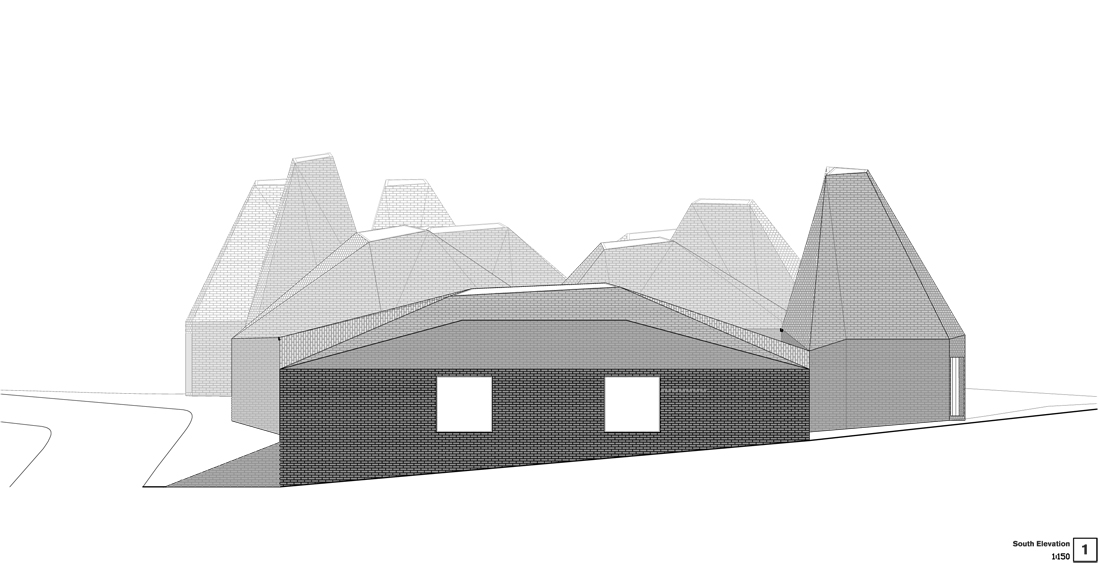

south elevation

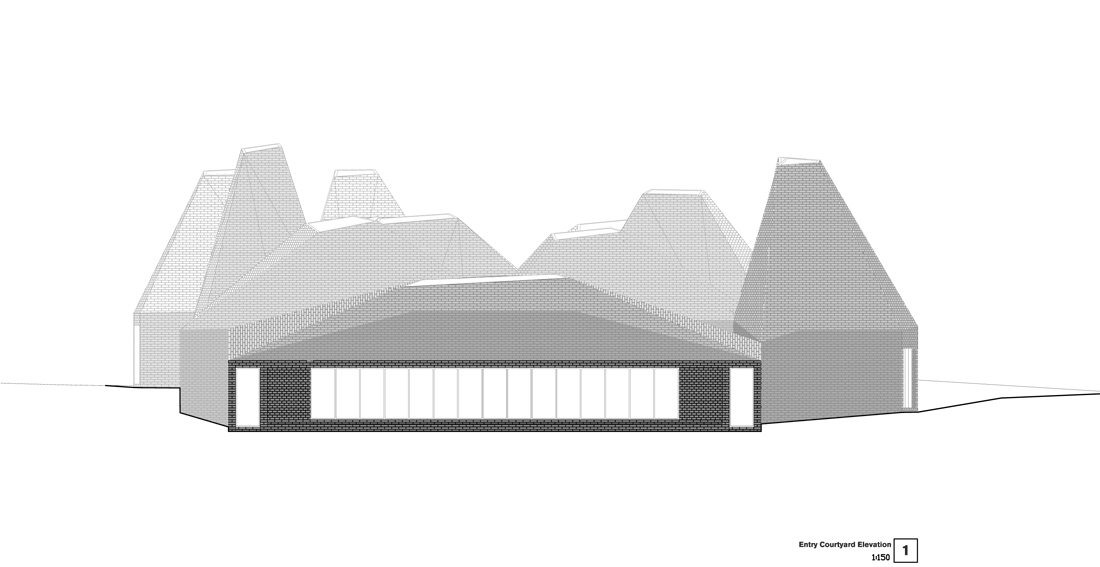

entry courtyard elevation

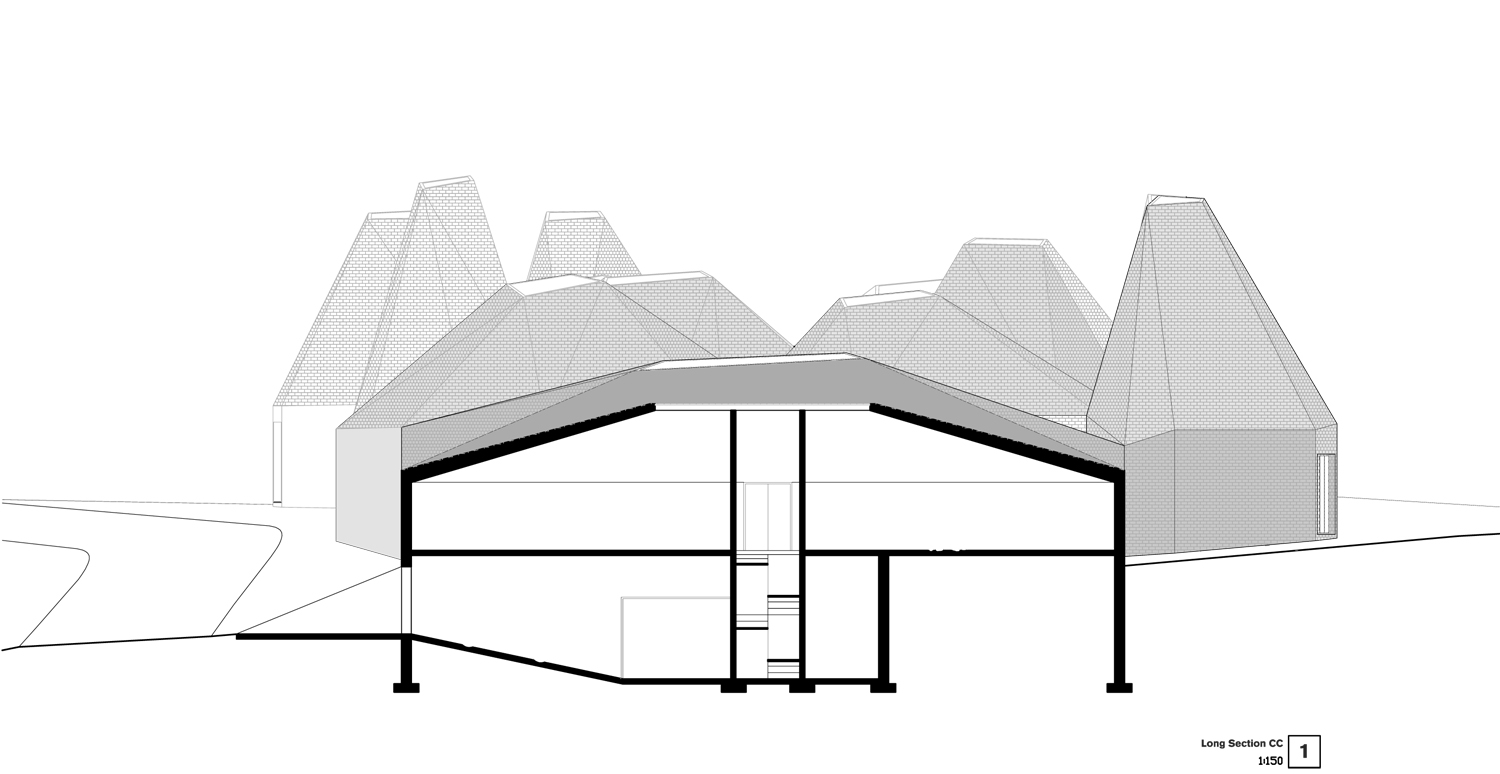

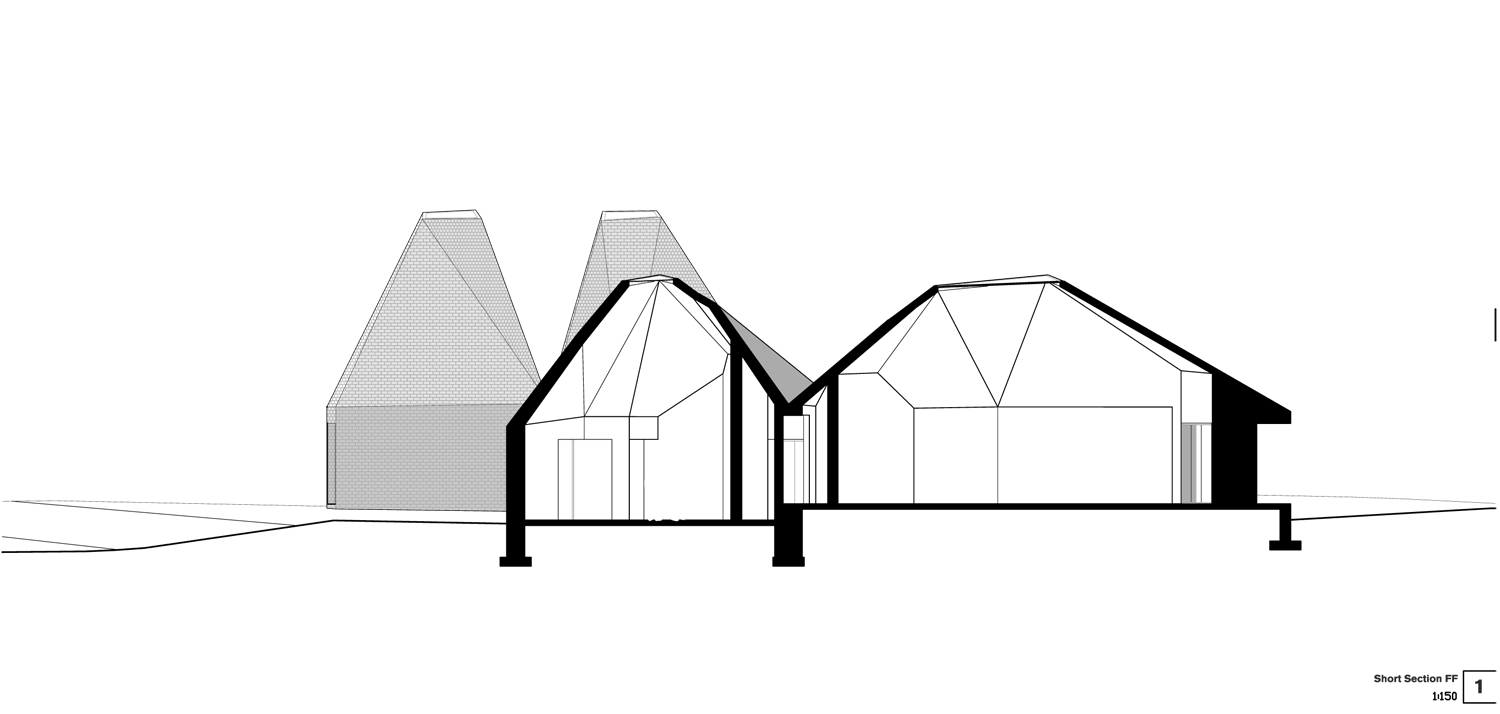

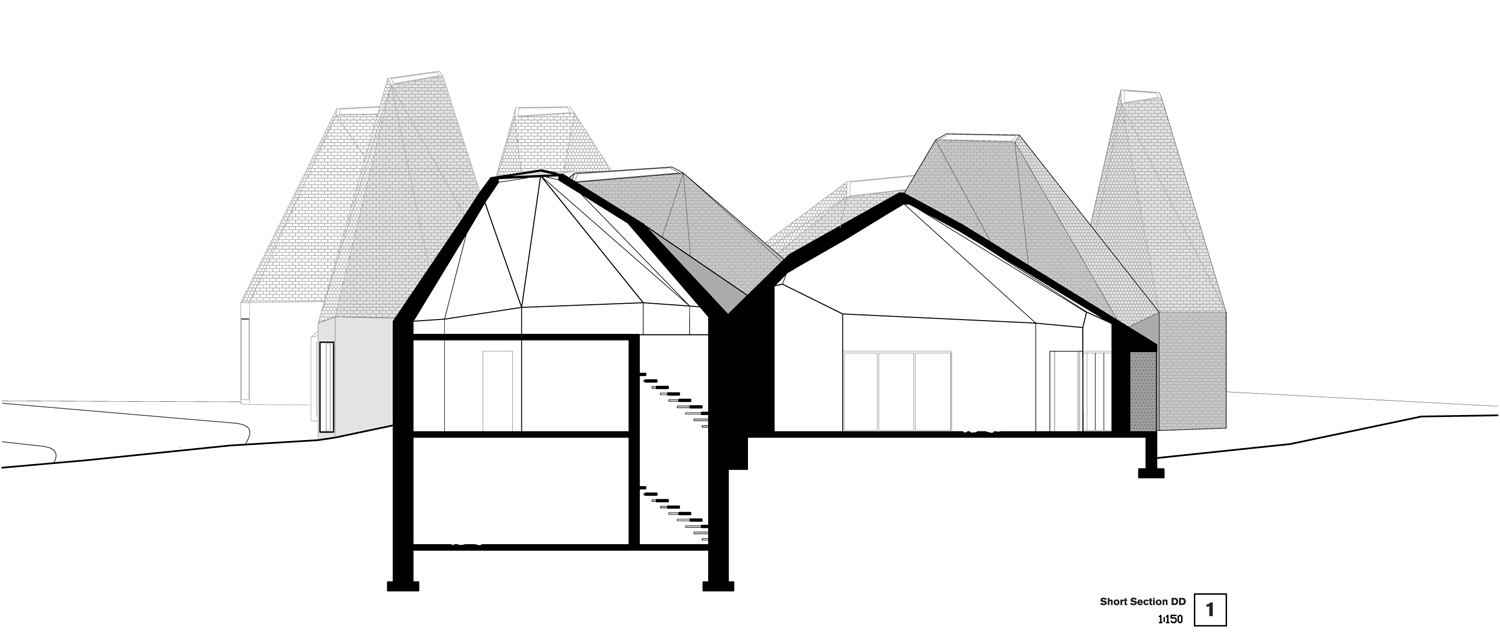

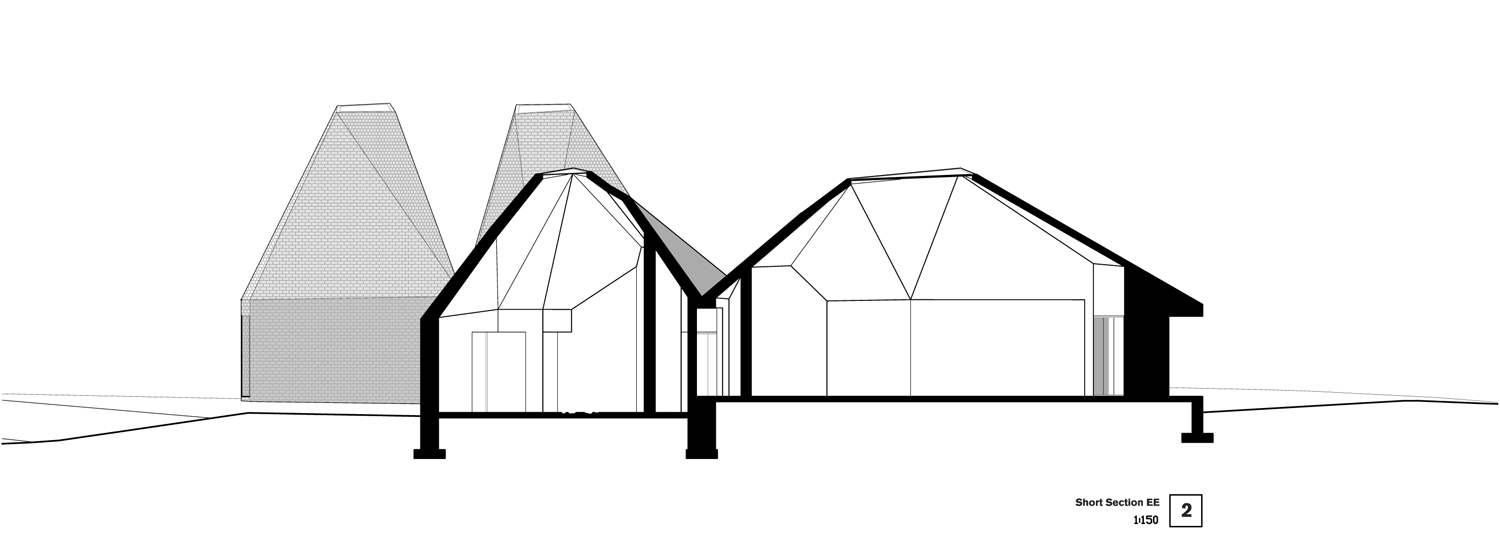

section 01

section 02

section 03

section 04

section 05

section 06

section 07

solar chimney diagram
